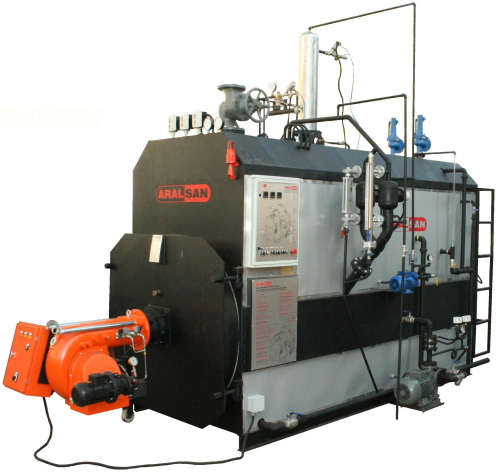

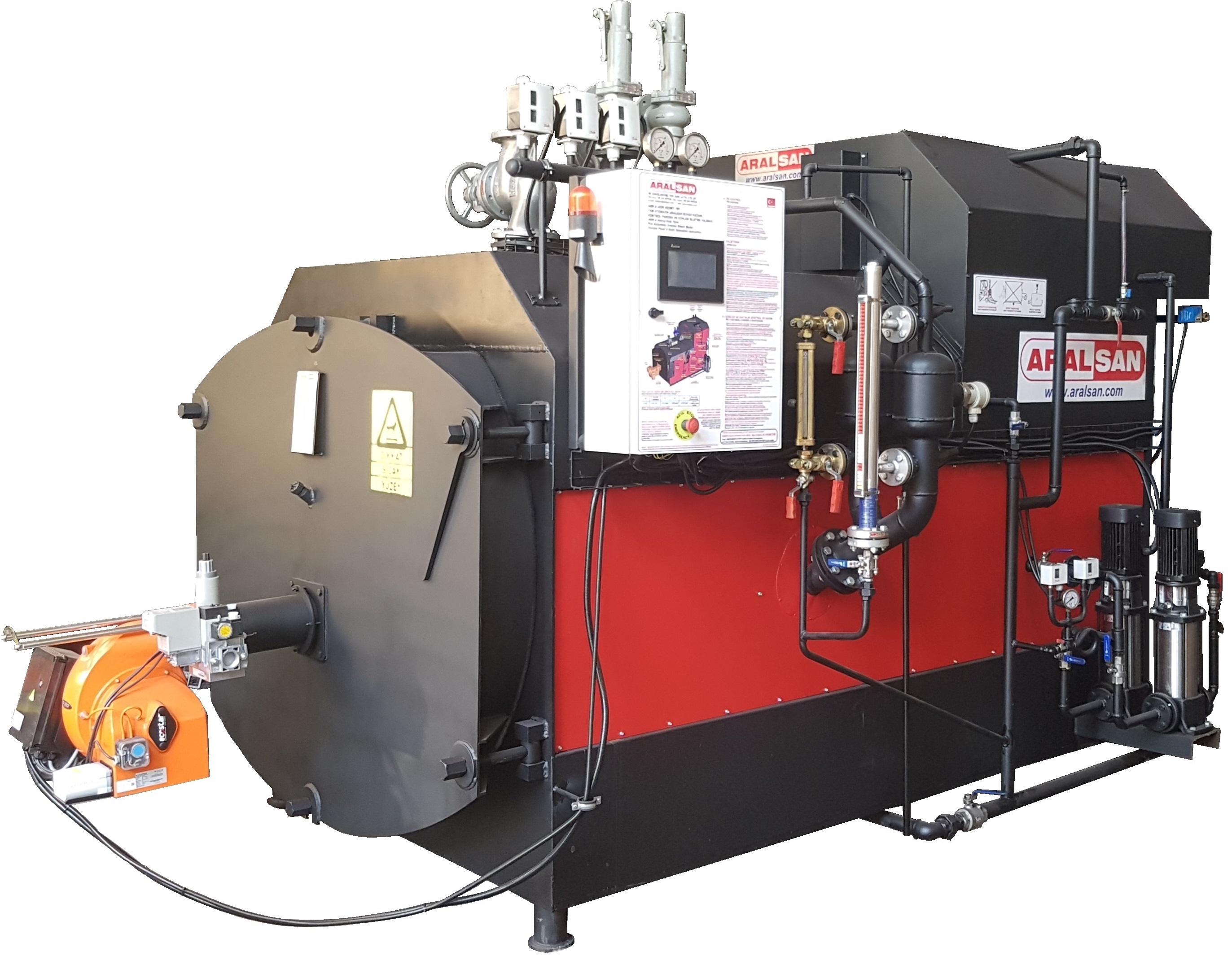

Language EnglishVertical Tabs General ALL IN ONE type package steam boiler including its all necessary equipment Ready to use after making of WSFEC[*] connections Certified in accordance with 2014/68/EU PED directive and delivered with CE sign Furnace is designed for gas and oil User friendly control panel offers easy operation [*] WSFEC - Five basic connections: Water, Steam, Fuel, Electricity, Chimney Capacity Range Manufactured according to customer request at the capacity range from 750 kg/h steam to 8000 kg/h steam at the operation pressure from 0.5 bar to 20 bar. Fuel Type Natural Gas Heavy Oil Diesel Oil LPG, LNG, CNG Bio Diesel Pyrolysis Gas Standard Operation Accessories Boiler body Control panel Nice operation instructiun on anodized aluminum Burner Integrated condensate tank Boiler feed pump Pump valves, check-valve, air-went valve, pressure gauge Main steam valve Air-went valve Bottom blowdown valve Surface blowdown valve Water level controller Water level gauge Pressure controller Pressure gauge Condensate tank valves and water level gauge Condensate tank water level controller Standard Safety Accessories Safety valves Safety pressure controller Electrodes for low water level Electrodes for high water level Electrodes for low water level in condensate tank Steam temperature controller Flue gas temperature controller Pump subpressure controller Pump super pressure controller Overload protection system for pump motor Phase protection relay Alarm light and buzzer Optional Accessories Modulating water feeding system Automatic bottom blowdown Automatic surface blowdown Steam flowmeter Steam flow rate adjusment system Water softener Feed water dosage pump Integrated deaerator Hot water exchanger Steam head Steam seperator Flue gas duct and chimney Remote control and remote monitoring Operation features Full automatic working Automatic combustion control according to steam pressure Safety operation Automatic control of each boiler parameter seperatly High efficiency Environment friendly operation Very very low flue gas emmission according to international regulations Manufacturing features Manufactured with high quality certified boiler sheet in accordance with EN 12953 High quality welded or seamless boiler tubes certified according to pressure group Special turbulators placed in boiler tubes, made from AISI 316 stainless steel All weldings are made by welders certified in accordance with EN 9606-1 All weldings are controlled by NDT technicians and UT test is applied to a certain percentage of them Whole body is painted double coat with heat resistant paint Insulated with rock wool and covered color galvanized sheet Combustion chamber door covered with ceramic blanket and coated fluid glass, resisting up to 1250 °C Ceramic gasket is used for door and covers sealings against gas leakage Handhole and manhole (if the shell diameter more than 1400 mm) on it offers easy cleaning of water side Mounted on power pedestal ARALSAN's warranty extendable up to 5 years
