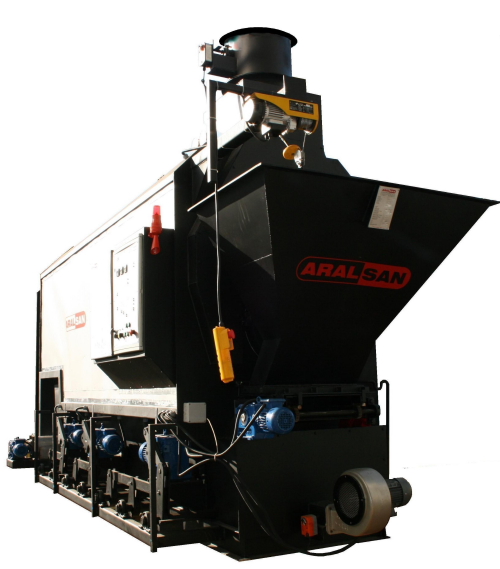

Language EnglishVertical Tabs General Hot water and pressurized hot water boiler Designed for central heating system Furnace is designed for solid fuel firing Mechanical automatic fuel shovel with air lock Horizontally movable grate system, placed directly in furnace, consists of high temperature resisting grates User friendly control panel easy operation Capacity Range Manufactured according to customer request at the capacity range from 650 kW to 6000 kW at the operation pressure from 3 bar to 20 bar Fuel Type Coal Wood Wood chips Bio-mass Pellet In the size of 15 - 100 mm Standard Operation Accessories Boiler body PLC control panel Nice operation instructiun on anodized aluminum Solid fuel bunker Full automatic, hydraulic or mechanic fuel shovel Full automatic, hydraulic or mechanic stoker system Cast iron alloy grates Screw type cast iron ash removing conveyor with AISI 310 stainles steel body Ash transport conveyor Combustion air fan Combustion air flap and its servo-motor Flue gas aspirator Flue gas flap and its servo-motor Temperature controller Temperature indicator Pressure gauge Standard Safety Accessories Safety water temperature controller Safety flue gas temperature controller Air fan and aspirator over load protection relays Gear boxes over load protection relays Phase protection relay Alarm light and buzzer Optional Accessories Fuel transport conveyor Hourly fuel storage level control electrodes Inlet and outlet valves Water distribution head Circulation pump Expantion tank Three-way valve Chimney Remote monitoring and remote control Operation features Safe at black out with its self combustion control. It is not necessary to be removed fire from combustion chamber during blackout Full automatic system including transporting fuel from fuel storage to bunker, loading fuel to combustion chamber with automatic shovel, burning fuel on stoker system, removing ash from boiler and transporting ash to ash storage Automatic combustion control according to water temperature. Safety operation. All combustible gasses coming from fuel can be fired in specially designed fire cell with high efficieny There are no unburned hydro-carbons in flue gas, which offers extra efficiency and low fuel consumption Soot is never seen in flue gas during operation of boiler Automatic control of each boiler parameter seperatly High efficiency Environment friendly operation Very very low flue gas emmission according to international regulations Every kind of solid fuel in the size of +15 mm can be burned on stoker system Manufacturing features Manufactured with high quality certified boiler sheet in accordance with EN 12953 High quality welded or seamless boiler tubes certified according to pressure group Special turbulators placed in boiler tubes, made from AISI 316 stainless steel All weldings are made by welders certified in accordance with EN 9606-1 All weldings are controlled by NDT technicians and UT test is applied to a certain percentage of them Whole body is painted double coat with heat resistant paint Insulated with rock wool and covered color galvanized sheet Combustion chamber door covered with ceramic blanket and coated fluid glass, resisting up to 1250 °C Ceramic gasket is used for door and covers sealings against gas leakage Handhole and manhole (if the shell diameter more than 1400 mm) on it offers easy cleaning of water side Mounted on power pedestal ARALSAN's warranty extendable up to 5 years
