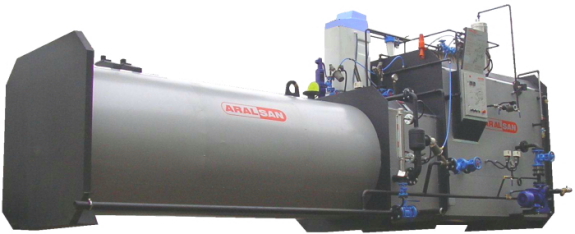

AKT / Closed Condensate System

Language English

Vertical Tabs

General

Aralsan Closed Condensate System saves your money.
It is designed to recover flash steam energy escaping to atmosphere from open condensate tank because of dropping condensate pressure when it reaches to open condensate tank.
In fact, closed condensate system holds all condensate system under pressure and doesn't allow to occur flash steam.
Flash steam amount varries from 10 % up to 27 % of boiler capacity according to boiler operation pressure.

Capacity Range

Aralsan Closed Condensate System can be applied up to 50 ton/h of steam capacity of existing steam boilers
Operation pressure ranges from 4 bar to 25 bar according to steam boiler operation pressure

Standard Operation Accessories

Standard Safety Accessories

Operation features

Saves your money
Recovers flash steam energy and reduces cost of steam production up to 27%
It can be easily installed at existing steam plants or new steam plants
It offers that flash steam energy is kept in system
Parallel montage possibility to existing open condensate tank and deaerator without changing plant
No flash steam because condensate system is under pressure
Saves energy and mass of flash steam because it doesn't allow to escape flash steam
Make-up water is not pumped to system except leakage because there is no mass loss through flash steam
Cost of preparing make-up water is up to zero because make-up water amount is up to zero
Cost of boiler chemicals is up to zero
Boiler is naturally protected against calcification because water qualty level in system remains for not adding make-up water
Temperature of feed water is up to at saturation level, which doesn't cause thermal shocks
Necessity of bottom and surface blowdown drops to zero because entry of make-up water drops to zero
Saves energy and mass lost through bottom and surface blowdown
Saves pump energy because pressure difference between inlet and outlet of pump is minimized

Manufacturing features

Manufactured with high quality certified boiler sheet in accordance with EN 13445
All weldings are made by welders certified in accordance with EN 9606-1
All weldings are controlled by NDT technicians and UT test is applied to a certain percentage of them
Whole body is painted double coat with heat resistant paint
Insulated with rock wool and covered color galvanized sheet
Handhole and manhole (if the shell diameter more than 1400 mm) on it offers easy cleaning of water side
Mounted on power pedestal
ARALSAN's warranty extendable up to 5 years
