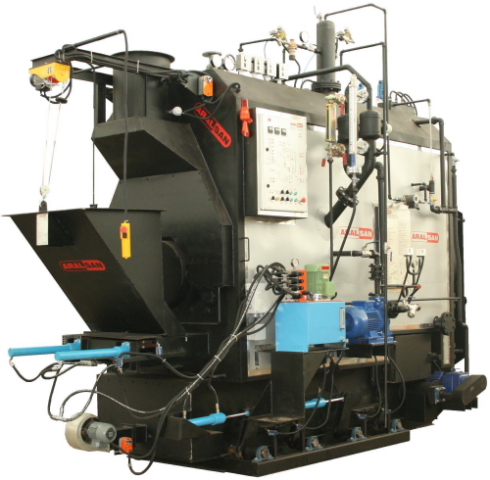

ABR-KY S / Stoker Steam Boiler With Movable Grates (1000-10000 kg/h)

Language English

Vertical Tabs

General

ALL IN ONE type package stoker steam boiler including its all necessary equipment
Ready to use after making of WSFEC[*] connections
Certified according to 2014/68/EU PED directive and delivered with CE sign
Furnace is designed for solid fuel firing
Mechanical automatic fuel shovel with air lock
Horizontally movable grate system, placed directly in furnace, consists of high temperature resisting grates
User friendly control panel easy operation

[*] WSFEC - Five basic connections:

Water, Steam, Fuel, Electricity, Chimney

Capacity Range

Manufactured according to customer request at the capacity range from 1000 kg/h steam to 10000 kg/h steam at the operation pressure from 0.5 bar to 20 bar.

Fuel Type

Coal
Wood
Wood chips
Bio-mass
Pellet

In the size of 15 - 100 mm

Standard Operation Accessories

Boiler body
PLC control panel
Nice operation instructiun on anodized aluminum
Solid fuel bunker
Full automatic, hydraulic or mechanic fuel shovel
Full automatic, hydraulic or mechanic stoker system
Cast iron alloy grates
Screw type cast iron ash removing conveyor with AISI 310 stainles steel body
Ash transport conveyor
Combustion air fan
Combustion air flap and its servo-motor
Flue gas aspirator
Flue gas flap and its servo-motor
Integrated condensate tank
Boiler feed pump
Pump valves, check-valve, air-went valve, pressure gauge
Main steam valve
Air-went valve
Bottom blow-down valve
Surface blow-down valve
Water level controller
Water level gauge
Pressure controller
Pressure gauge
Condensate tank valves and water level gauge
Condensate tank water level controller

Standard Safety Accessories

Safety valves
Safety pressure controller
Electrodes for critic water level
Steam temperature controller
Flue gas temperature controller
Pump subpressure controller
Pump super pressure controller
Overload protection system for pump motor
Overload protection system for fan and aspirator motors
Overload protection system for motors of shovel, stoker and ash conveyor
Phase protection relay
Alarm light and buzzer

Optional Accessories

Fuel transport conveyor
Hourly fuel storage level control electrodes
Modulating feed water system
Automatic bottom blowdown
Automatic surface bowdown
Steam flowmeter
Steam flowrate control system
Water softener
Feed water dosage pump
Compact deaerator
Hot water heat exchanger
Steam head
Steam separator
Flus gas duct and chimney
Computer aided control and remote control system

Operation features

Safe at black out with its self combustion control. It is not necessary to be removed fire from combustion chamber during blackout
Full automatic system including transporting fuel from fuel storage to bunker, loading fuel to combustion chamber with automatic shovel, burning fuel on stoker system, removing ash from boiler and transporting ash to ash storage
Automatic combustion control according to steam pressure. Safety operation.
All combustible gasses coming from fuel can be fired in specially designed fire cell with high efficieny
There are no unburned hydro-carbons in flue gas, which offers extra efficiency and low fuel consumption
Soot is never seen in flue gas during operation of boiler
Automatic control of each boiler parameter seperatly
High efficiency
Environment friendly operation
Very very low flue gas emmission according to international regulations
Every kind of solid fuel in the size of +15 mm can be burned on stoker system

Manufacturing features

Manufactured with high quality certified boiler sheet in accordance with EN 12953
High quality welded or seamless boiler tubes certified according to pressure group
Special turbulators placed in boiler tubes, made from AISI 316 stainless steel
All weldings are made by welders certified in accordance with EN 9606-1
All weldings are controlled by NDT technicians and UT test is applied to a certain percentage of them
Whole body is painted double coat with heat resistant paint
Insulated with rock wool and covered color galvanized sheet
Combustion chamber door covered with ceramic blanket and coated fluid glass, resisting up to 1250 °C
Ceramic gasket is used for door and covers sealings against gas leakage
Handhole and manhole (if the shell diameter more than 1400 mm) on it offers easy cleaning of water side
Mounted on power pedestal
ARALSAN's warranty extendable up to 5 years
